10mm 1.5v 3.0v metal dc gearmotor

Time：2021-07-12 08:10　Click：

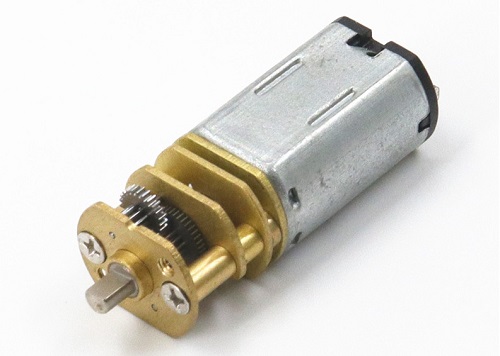

Product description 10mm 1.5v 3.0v metal dc gearmotor

Diameter:10mm

Length:24.2mm

Characters:
1.Small size dc gearmotor with low speed and big torque
2.10mm gearmotor provide 0.01Nm torque and more reliable
3.Suitable to small diameter, low noise and big toque application
4.Reduction Ratio: 100、250

Gearbox features:

1. It adopts all metal instrument precision spur gear tower structure, which has large torque, long life and stable operation.

2, Using precious metal brush DC motor, low noise, stable performance, low power consumption, can be driven by solar cells.

3. Meet EU environmental protection standards.

4. Appearance and structural design strive to be thin, short, compact, and lightweight.

5. Make the modulus of the gear to a minimum of 0.15mm within a limited volume.

Motor Specifications:

1. Rated Voltage: 3.0-12V

2. No Load Speed: 25-250 rpm

3. No Load Current: 50 mA
4. Rated Load Speed: 21-229 rpm

5. Rated Load Current: 100 mA

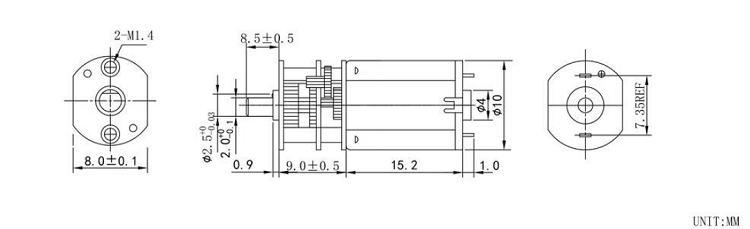

Drawing of 10mm metal dc gearmotor

Motor Technical Data

Motor Model	Rated Voltage	No-load Speed	No-load Current	Rated speed	Rated torque	Rated current	Output power	Stall Torque	Stall Current
Motor Model	VDC	r/min	mA	rpm	g.cm	mA	W	g.cm	mA
SFF-M20VA-09120	3.0	15700	40	13500	1.0	100	0.14	7.0	0.50

Gear MotorTechnical Data

Gearbox with motor:GM10-M20-09120
Reduction ratio	100	250
Length mm	9	9
No-load speed rpm	150	60
Rated speed rpm	130	50
Rated torque Kg.cm	0.06	0.15
Max.momentary tolerance torque kg.cm	0.3	0.3

Gearbox with motor:GM10-M20-10100
Reduction ratio	100	250
Length mm	9	9
No-load speed rpm	160	65
Rated speed rpm	130	50
Rated torque Kg.cm	0.1	0.25
Max.momentary tolerance torque kg.cm	0.3	0.3

Gearbox with motor: GM10-M20-07170
Reduction ratio	10	250
Length mm	9	9
No-load speed rpm	80	30
Rated speed rpm	55	22
Rated torque kg.cm	0.06	0.15
Max.momentary tolerance torque kg.cm	0.3	0.3

Notice: Data in this typical specification sheet are for other certain customers. Voltage, Torque,
Speed, Current, Power and shaft extension feature & dimension can be changed to meet customer
specific requirement
