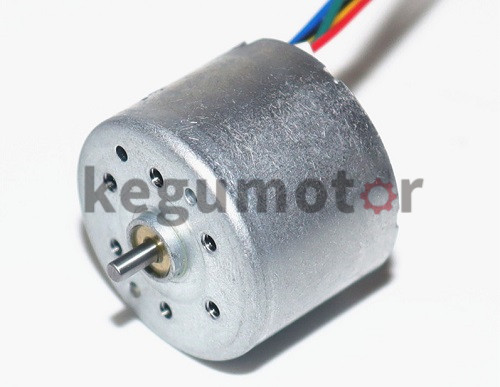

BL2418 BL2418I B2418M OD 24mm Mini BLDC Brushless DC Motor

Desc:

BL2418 BL2418I B2418M 24mm brushless dc motor, inner rotor, Built-in driver, control, PWM, cw, ccw rotation, FG speed feedback signal, Low EMC, Low noiseinner rotor, small brushless dc motor, diameter 24mm bldc motor, small bldc motor...

Recommended
Detailed


Specifications:

  • Size: Ø24.0* 18.0mm
  • Built-in driver ( built-in driver Controller with hall sensors)
  • PWM pulse wide speed range
  • Clockwise/counter-clockwise rotation
  • FG speed feedback signal
  • Low EMC
  • Low noise
  • Long life: 10000hrs Min.
  • Over-current protection
  • Over-voltage protection
  • Under-voltage protection
  • OEM and ODM orders are welcome
  • The design can be customized

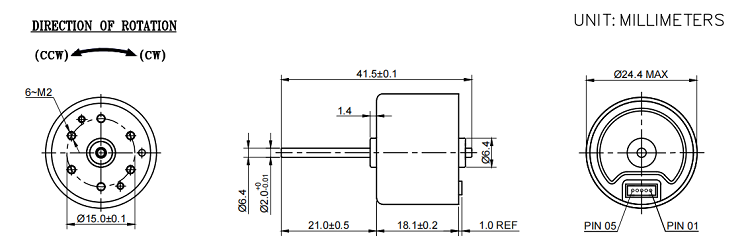

BL2418 drawing

BL2418 data sheet

Motor Model

Rated

 Voltage

No-load

Speed

No-load

Current

Rated

 speed

Rated

 torque

Rated

 current

Output

power

Stall Torque

Stall Current

VDC r/min A rpm mNm A W mNm A
BL2418-V1 6.0 9260 0.21 7490 2.45 0.61 1.93 6.2

1.2

BL2418-V2 12.0 6520 0.08 4660 2.45 0.24 1.20 8.4 0.65
BL2418-V3 12.0 12420 0.13 9580 2.94 0.43 2.96 12.8 1.47
BL2418-V4 24.0 12770 0.07 9280 5.89 0.42 5.72 21.5 1.32
BL2418-V5 24.0 8660 0.06 6690 2.94 0.17 2.06 12.8 0.55

Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.

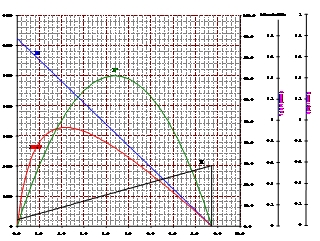

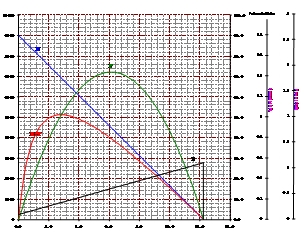

BL2418-V2                   12V                                     BL2418-V4                       24V

  performance curveperformance curve
