37mm 18v micro metal gearmotor

Desc:

37mm 18v micro metal gearmotor,KG-37B555 18v 37mm metal gear motor Product Model:metal spur gear motor OD: 37mm Gearbox:metal Rotation: cw&ccw...

Recommended
Detailed


Product description

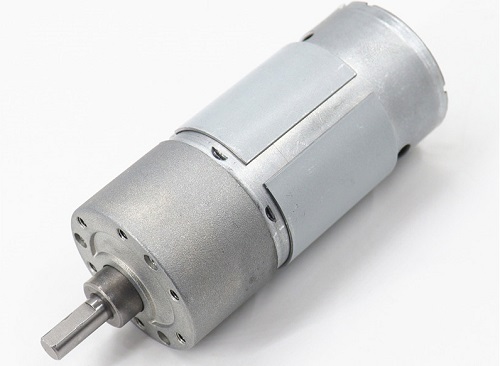

Model:KG-37B555  37mm 18v micro metal gearmotor

Diameter:37mm

Length:57mm+gearbox

Characters:
1.Small size dc gear motor with low speed and big torque
2.37mm gear motor provide 0.1Nm torque and more reliable
3.Suitable to small diameter, low noise and big toque application

4.Dc Gear motors can match encoder,11ppr
5.Reduction Ratio: 10、15、18、25、30、35、60、76、90、100、120、150、200、255、300

Gearbox features:

1. It adopts all metal instrument precision spur gear tower structure, which has large torque, long life and stable operation.

2, Using precious metal brush DC motor, low noise, stable performance, low power consumption, can be driven by solar cells.

3. Meet EU environmental protection standards.

4. Appearance and structural design strive to be thin, short, compact, and lightweight.

5. Make the modulus of the gear to a minimum of 0.5mm within a limited volume.

Motor Specifications:

1. Rated Voltage: 3.0-24V

2. No Load Speed: 6-1000 rpm

3. No Load Current: 60 mA
4. Rated Load Speed: 5-950 rpm

5. Rated Load Current: 620 mA

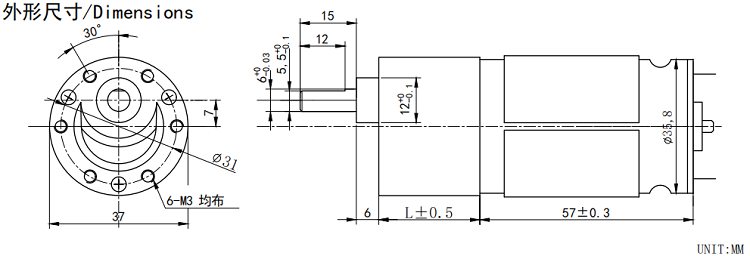

Drawing of 37mm 18v micro metal dc gearmotor

Gear ratio and length L of gearbox

Number of stages

2

3

4

5

6

Gear ratio

6

16.7

45

110

330

10

23.3

50

121

350



30

60

135

405





70

150

420





90

180

450





100

210

490







250

540







270

630







300

810

Length of gearbox L(mm)

19

21.5

24

26.5

29

SPECIFICATIONS:

MODEL

V

NO LOAD

RATED LOAD

STALL

SPEED
rpm

CURRENT
A

SPEED
rpm

CURRENT
A

TORQUE
Nm

OUTPUT
W

TORQUE
Nm

CURRENT
A

KG-37B555-10

12

450

0.3

380

0.83

0.13

5.34

0.88

4.3

KG-37B555-30

12

150

0.3

126

0.83

0.36

4.78

2.35

4.3

KG-37B555-50

12

90

0.3

76

0.83

0.53

4.28

3.5

4.3

KG-37B555-70

12

64

0.3

54

0.83

0.76

4.32

4.9

4.3

KG-37B555-90

12

50

0.3

42

0.83

0.98

4.3

6

4.3

KG-37B555-150

24

24

0.2

20

0.5

1.66

3.5

6.5

3.0

KG-37B555-270

24

13

0.2

11

0.5

2.9

3.38

7

3

KG-37B555-630

12

5.5

0.3

4.5

0.65

4.3

2.03

7

3.4

Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.
